Medical examination module
- Commodity name： Medical examination module
- Description
- Vehicle Parameters
-
☆ Product features: high efficiency, high safety, high quality, information technology and multi-functionality.

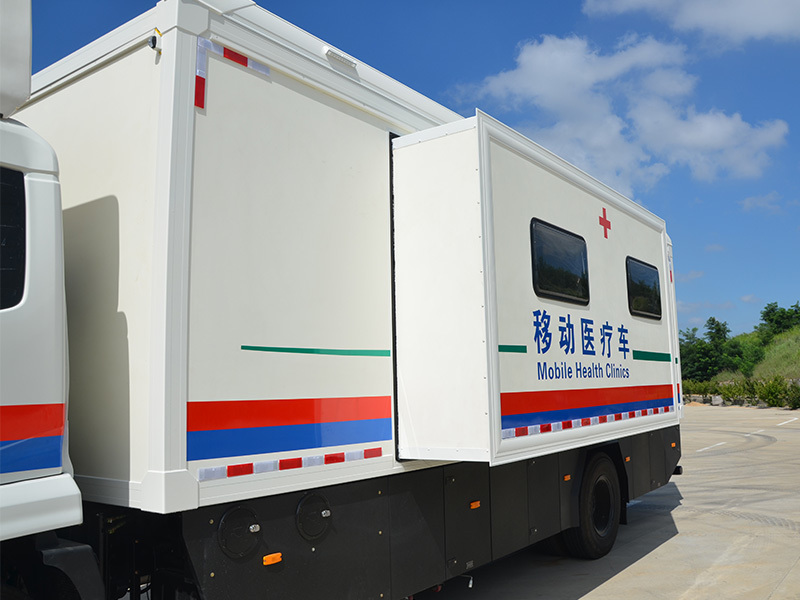

I. Efficient:The space advantage is realised by the extended functionality and the high circulation advantage is realised by the space advantage.
II. High security:Complete power supply system

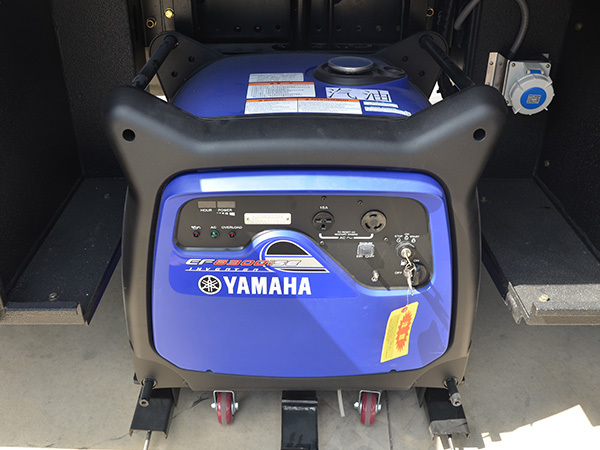

1、Cable reel ：Industrial special cable reel, electric put away 50m×10mm². 2、Generator set: used away from the car, no vibration, no noise, no interference

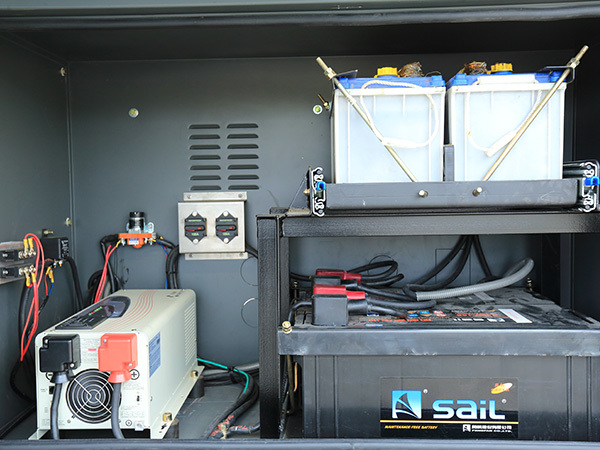

3. Power Distribution System: High-quality accessories, aviation-grade power supply guarantee. uninterruptible power supply (UPS), providing stable and sustainable power supply to ensure data storage. Voltage regulator, double sets of voltage regulator system, respectively for the vehicle X-ray machine and other functional areas to provide voltage regulator, to ensure the safety of equipment power.

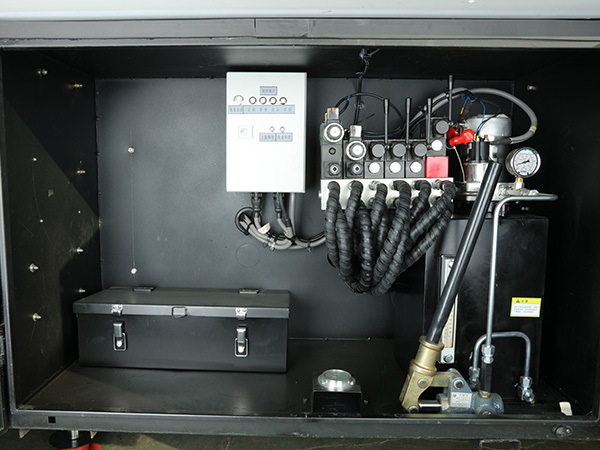

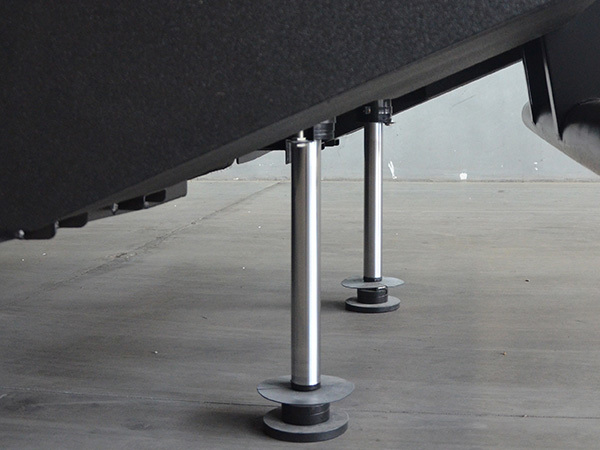

Hydraulic system, the four corners of the vehicle are installed with outrigger cylinders, equipped with 1.6kW hydraulic pump station, to provide support for the four outrigger cylinders, when parking operation, the four outrigger cylinders are extended, auxiliary support to keep the vehicle body stable.
III. High quality
High-quality materials are used for the heating and ventilation environment of the whole vehicle, internal and external lighting, on-board air conditioning, lower trailer, doors and windows, and boarding ladders.
IV. Information technology and multifunctionality
1、Checkups: large-scale routine checkups such as rural patrols, factory and mine checkups, etc.

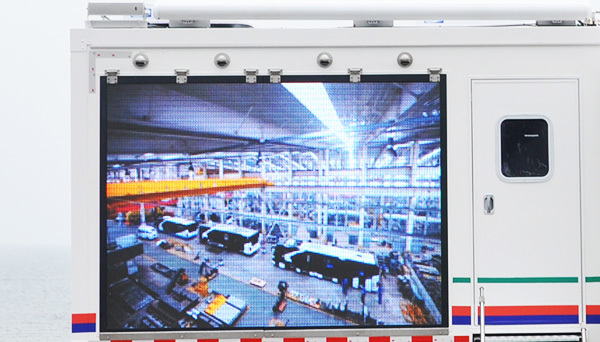

2、Promotion: health knowledge popularisation, hospital image enhancement, large-scale medical check-up precautions reminder, hospital synchronous call display
3、Security: major meetings, events, medical support, lighting and sound systems
4、Emergency response: major disasters such as earthquakes, mining accidents and other on-site rescue, epidemic outbreaks, suspected cases of screening, isolation, transport
5、Diagnostic rounds: remote diagnosis and treatment in townships and remote areas.
-

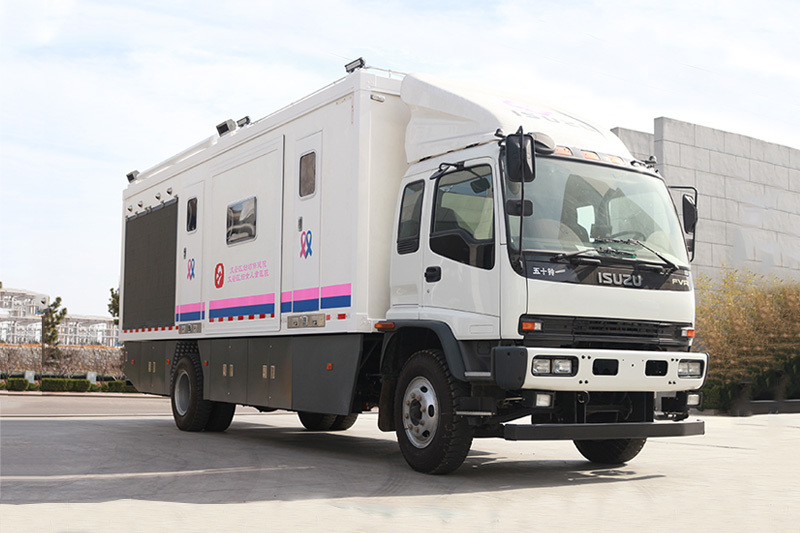

Product Model WGT5141XYL Vehicle weight 13500kg Length*Width*Height 9940mm×2470mm×3780mm Wheelbases 5600mm Maximum net chassis engine power 155kW Driving form 4×2 Rated power of generator sets 6kw Expansion compartment expansion formation 650mm Stretch time (one way) 20s Cable reel length 50m Maximum speed 90km/h
